NSD151

Properties at a glance

  • ft
    50
    MHz
  • hFE
    5
    β
  • Ic
    1
    A
  • Pc
    10
    W
  • Pol
    NPN
  • Tj
    150
    °C
  • TranMat
    Si
  • Vcb
    30
    V
  • Vce
    30
    V
  • Veb
    12
    V

Find similar components to the NSD151 by clicking the properties (above) that you want to match.

Component Package & Description

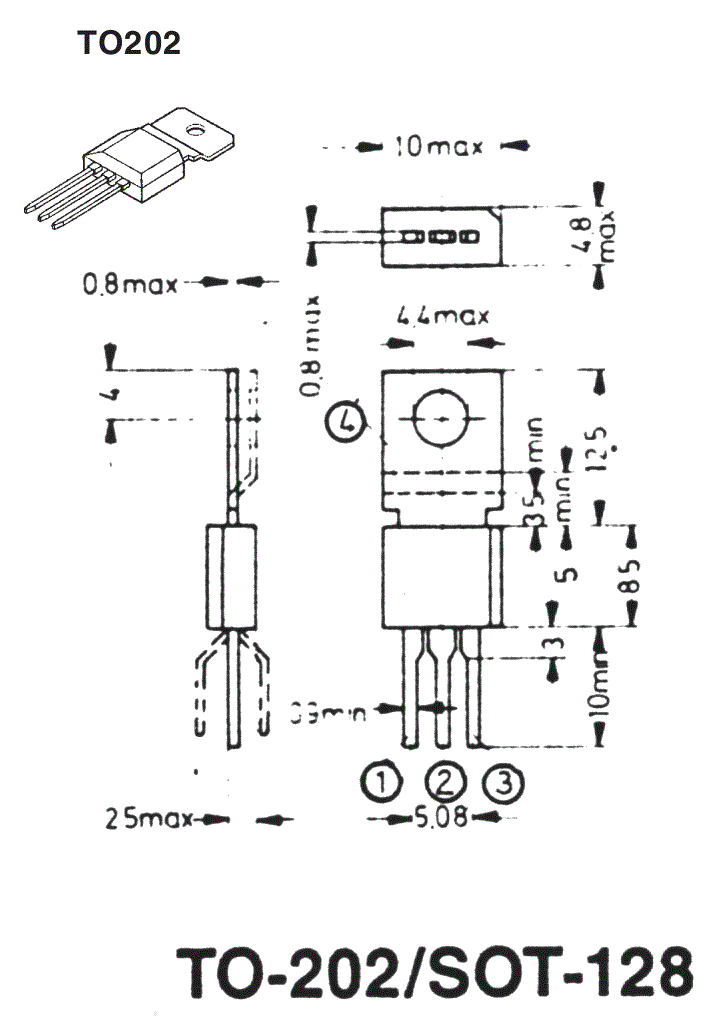

Part number NSD151 is reportedly available in a TO-202 package.

External Resources

Properties and Attributes

Transition Frequency ft
50 MHz
Forward Current Transfer Ratio hFE
5 β
Maximum Collector Current Ic
1 A
Maximum Power Dissipation Pc
10 W
Polarity Pol
NPN
Maximum Junction Temperature Tj
150 °C
Material of Transistor TranMat
Si
Maximum Collector-Base Voltage Vcb
30 V
Maximum Collector-Emitter Voltage Vce
30 V
Maximum Emitter-Base Voltage Veb
12 V
