2N3613

Properties at a glance

  • ft
    0.3
    MHz
  • hFE
    60
    β
  • Ic
    15
    A
  • Pc
    77
    W
  • Pol
    PNP
  • Tj
    110
    °C
  • TranMat
    Ge
  • Vcb
    40
    V
  • Vce
    25
    V
  • Veb
    20
    V

Find similar components to the 2N3613 by clicking the properties (above) that you want to match.

Component Package & Description

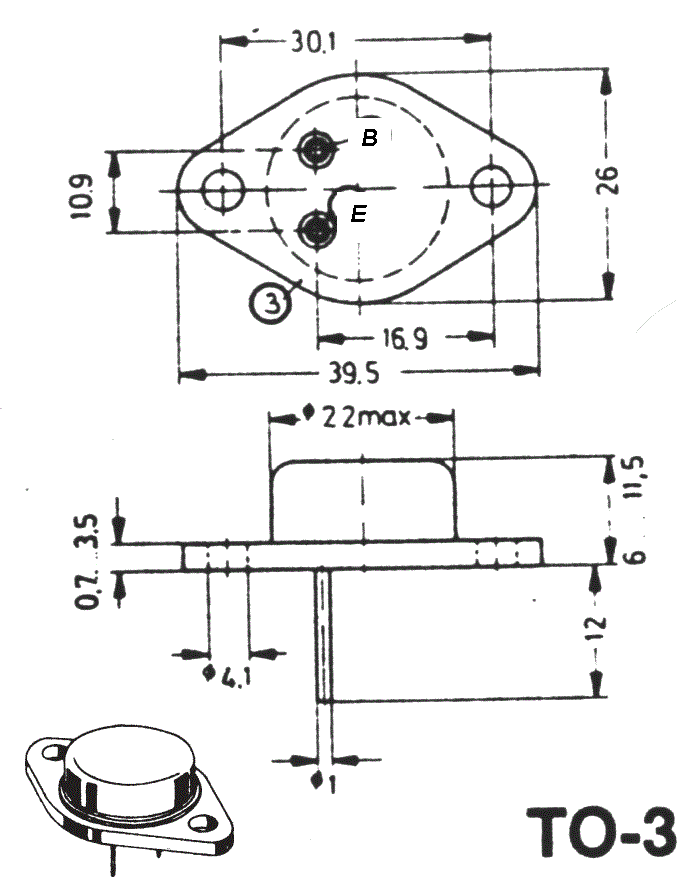

Part number 2N3613 is reportedly available in a TO-3 package.

External Resources

Properties and Attributes

Transition Frequency ft
0.3 MHz
Forward Current Transfer Ratio hFE
60 β
Maximum Collector Current Ic
15 A
Maximum Power Dissipation Pc
77 W
Polarity Pol
PNP
Maximum Junction Temperature Tj
110 °C
Material of Transistor TranMat
Ge
Maximum Collector-Base Voltage Vcb
40 V
Maximum Collector-Emitter Voltage Vce
25 V
Maximum Emitter-Base Voltage Veb
20 V
