2SC5001

Properties at a glance

  • Cc
    220
    pF
  • ft
    150
    MHz
  • hFE
    120
    β
  • Ic
    10
    A
  • Pc
    1
    W
  • Pol
    NPN
  • Tj
    150
    °C
  • TranMat
    Si
  • Vcb
    30
    V
  • Vce
    20
    V
  • Veb
    6
    V

Find similar components to the 2SC5001 by clicking the properties (above) that you want to match.

Component Package & Description

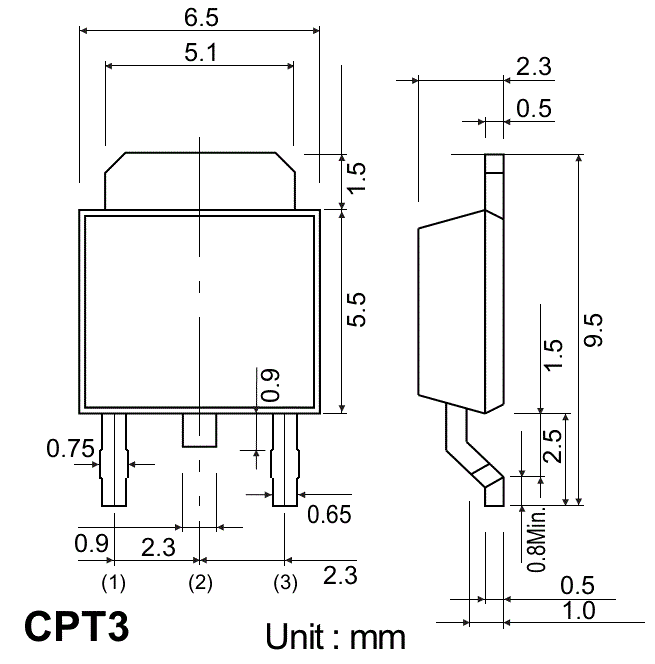

Part number 2SC5001 is reportedly available in a CPT3 package.

External Resources

Properties and Attributes

Collector Capacity Cc
220 pF
Transition Frequency ft
150 MHz
Forward Current Transfer Ratio hFE
120 β
Maximum Collector Current Ic
10 A
Maximum Power Dissipation Pc
1 W
Polarity Pol
NPN
Maximum Junction Temperature Tj
150 °C
Material of Transistor TranMat
Si
Maximum Collector-Base Voltage Vcb
30 V
Maximum Collector-Emitter Voltage Vce
20 V
Maximum Emitter-Base Voltage Veb
6 V
