2N2906U

Properties at a glance

  • Cc
    4.5
    pF
  • ft
    250
    MHz
  • hFE
    100
    β
  • Ic
    0.2
    A
  • Pc
    0.2
    W
  • Pol
    PNP
  • Tj
    150
    °C
  • TranMat
    Si
  • Vcb
    40
    V
  • Vce
    40
    V
  • Veb
    5
    V

Find similar components to the 2N2906U by clicking the properties (above) that you want to match.

Component Package & Description

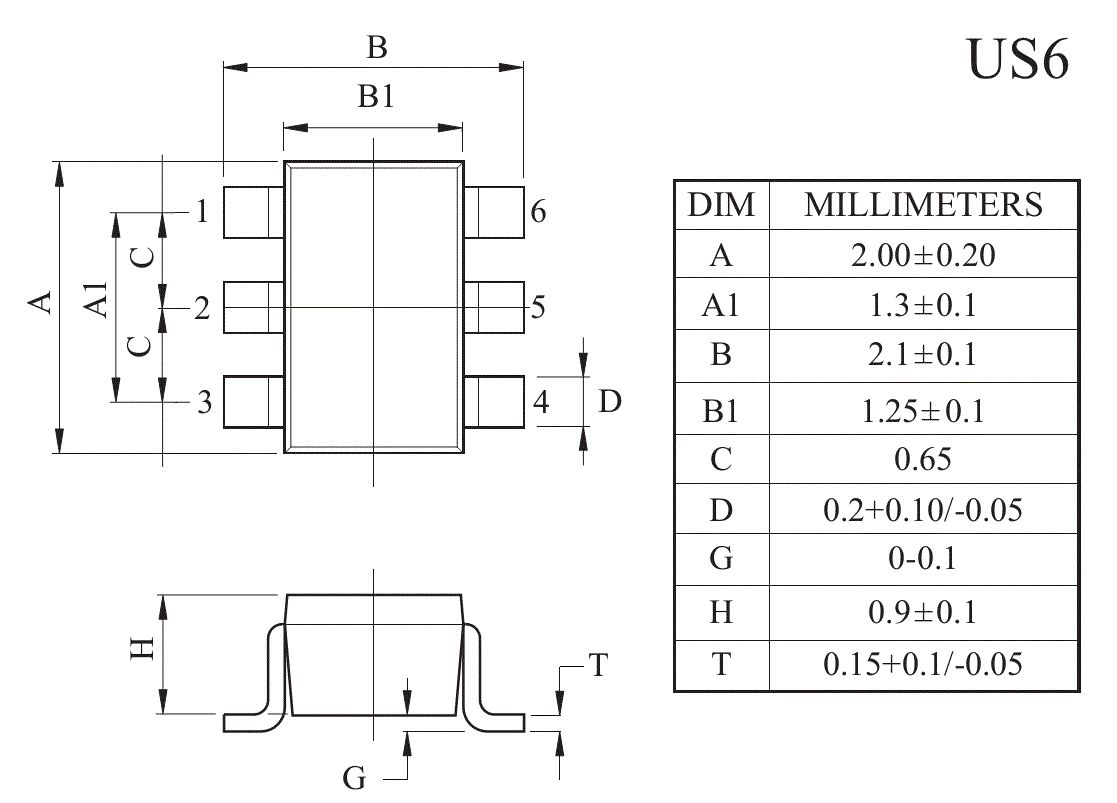

Part number 2N2906U is reportedly available in a US6 package.

External Resources

Properties and Attributes

Collector Capacity Cc
4.5 pF
Transition Frequency ft
250 MHz
Forward Current Transfer Ratio hFE
100 β
Maximum Collector Current Ic
0.2 A
Maximum Power Dissipation Pc
0.2 W
Polarity Pol
PNP
Maximum Junction Temperature Tj
150 °C
Material of Transistor TranMat
Si
Maximum Collector-Base Voltage Vcb
40 V
Maximum Collector-Emitter Voltage Vce
40 V
Maximum Emitter-Base Voltage Veb
5 V
