2N697

Properties at a glance

  • Cc
    35
    pF
  • ft
    50
    MHz
  • hFE
    40
    β
  • Ic
    0.5
    A
  • Pc
    0.6
    W
  • Pol
    NPN
  • Tj
    175
    °C
  • TranMat
    Si
  • Vcb
    60
    V
  • Vce
    40
    V
  • Veb
    5
    V

Find similar components to the 2N697 by clicking the properties (above) that you want to match.

Component Package & Description

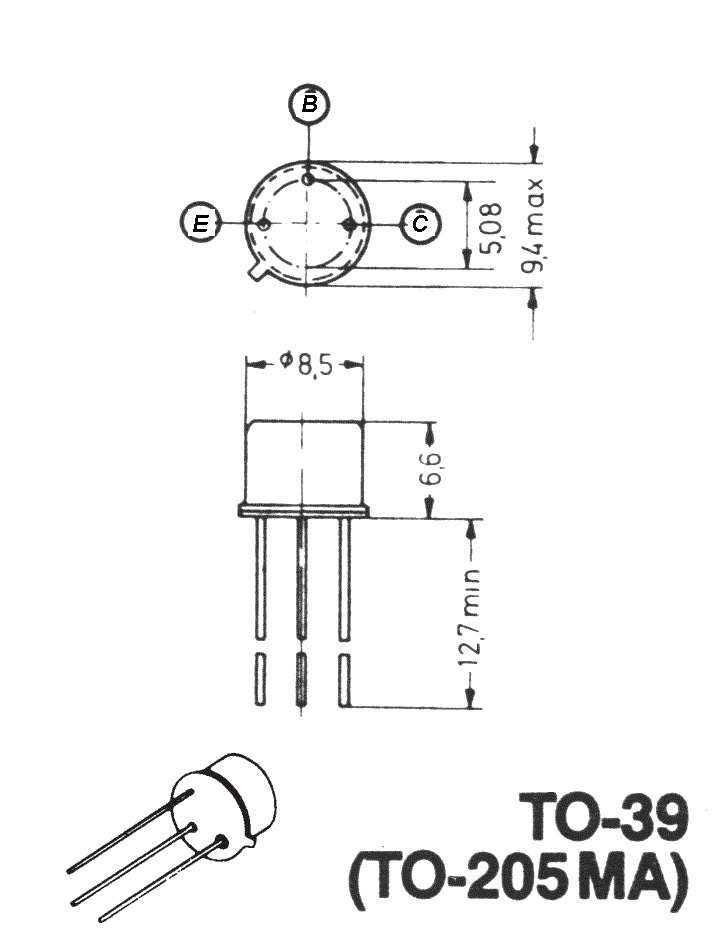

Part number 2N697 is reportedly available in a TO-39 package.

External Resources

Properties and Attributes

Collector Capacity Cc
35 pF
Transition Frequency ft
50 MHz
Forward Current Transfer Ratio hFE
40 β
Maximum Collector Current Ic
0.5 A
Maximum Power Dissipation Pc
0.6 W
Polarity Pol
NPN
Maximum Junction Temperature Tj
175 °C
Material of Transistor TranMat
Si
Maximum Collector-Base Voltage Vcb
60 V
Maximum Collector-Emitter Voltage Vce
40 V
Maximum Emitter-Base Voltage Veb
5 V
