BD675BPL

Properties at a glance

  • ft
    260
    MHz
  • hFE
    800
    β
  • Ic
    4
    A
  • Pc
    40
    W
  • Pol
    NPN
  • Tj
    150
    °C
  • TranMat
    Si
  • Vcb
    45
    V
  • Vce
    45
    V
  • Veb
    5
    V

Find similar components to the BD675BPL by clicking the properties (above) that you want to match.

Component Package & Description

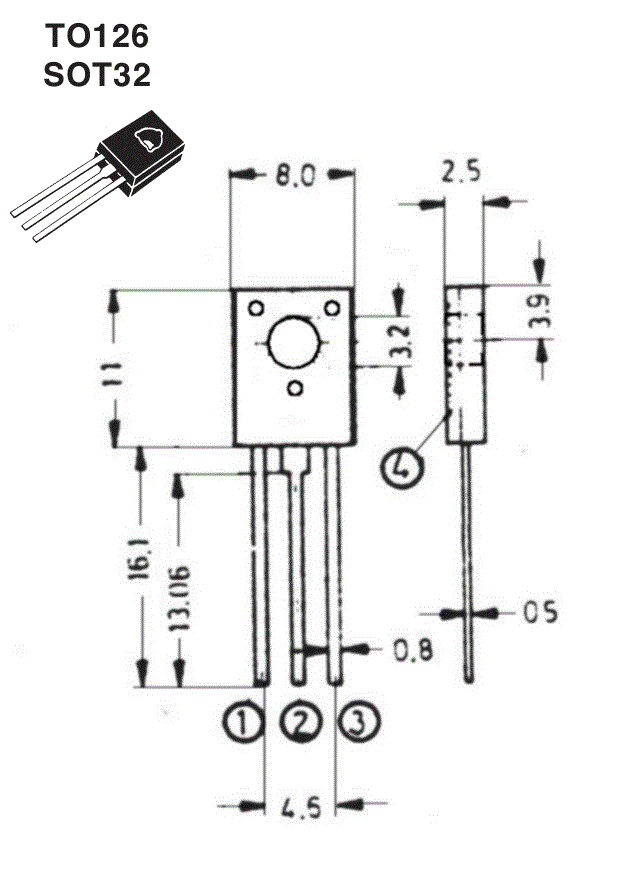

Part number BD675BPL is reportedly available in a TO-126 package.

External Resources

Properties and Attributes

Transition Frequency ft
260 MHz
Forward Current Transfer Ratio hFE
800 β
Maximum Collector Current Ic
4 A
Maximum Power Dissipation Pc
40 W
Polarity Pol
NPN
Maximum Junction Temperature Tj
150 °C
Material of Transistor TranMat
Si
Maximum Collector-Base Voltage Vcb
45 V
Maximum Collector-Emitter Voltage Vce
45 V
Maximum Emitter-Base Voltage Veb
5 V
